MBR Technology

Darnasus is specializing in design, construction and operation of membrane technology bioreactors (MBR) wastewater treatment facilities. This is the technology of choice for compact units that offer unmatched effluent quality.

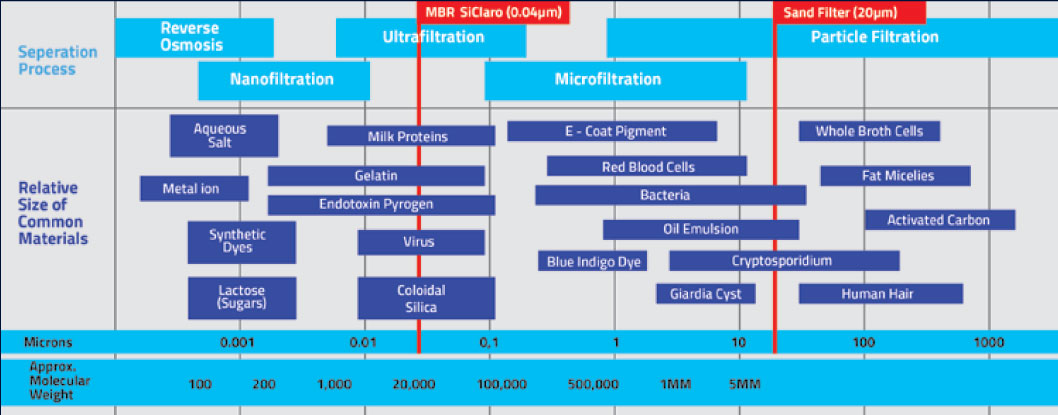

MBR is the combination of activated sludge treatment together with a separation of the biological sludge by micro- or ultra-filtration membranes with pore size of typically 10 nm to 0.5µm to produce the particle-free effluent. The physical barrier imposed by the membrane system provides complete disinfection of the treated effluent. MBR systems require less area compared to conventional plants.

Ultra Filtration creates a barrier for bacteria and viruses, leaving the water purified. The useful microorganisms in the aeration chamber consume the suspended and dissolved substances.

*Click here to enlarge image

Smaller footprint.

Ultra Filtration of particles up to 0.1μm.

Purified water can be used for irrigation.

Long life German membranes for maximum efficiency.

Compact, modular and scalable design.

Tailored design based on your special needs. Can serve house blocks or single houses.

Commercial Applications

For Hotels, Residential Complexes, small Communities or Camps, MBR is the technology of choice for compact units that offer unmatched effluent quality.

MBR technology, a combination of proven activated sludge technology and innovative membrane process, has a number of advantages over conventional activated sludge process.

The MBR membrane filters are positioned directly in aeration tanks where they ensure a safe retention of activated sludge, bacteria and viruses.

This means that a conventional secondary settling tank and sand filters are no longer needed to achieve the highest quality of effluent.

For Hotels, Residential Complexes, small Communities or Camps, MBR is the technology of choice for compact units that offer unmatched effluent quality.

MBR technology, a combination of proven activated sludge technology and innovative membrane process, has a number of advantages over conventional activated sludge process.

The MBR membrane filters are positioned directly in aeration tanks where they ensure a safe retention of activated sludge, bacteria and viruses.

This means that a conventional secondary settling tank and sand filters are no longer needed to achieve the highest quality of effluent.

*Click here to enlarge image



Private Customers

Darnasus offers small purification units for decentralized treatment of wastewater from single houses or blocks. Those units can serve 2-20 people and produce clean recycled water.

Cleaned water can be used for irrigation or toilet flushing, saving money from your bill. Produced water will consistently meet the most strict quality standards.

Our unit is a smaller version of the advanced biological treatment technology called MBR, which is used in municipal sewage stations.

Pool Water Recycle

Darnasus can offer a packaged 4-in-1 solution for your wastewater utilization. This includes a septic tank, the MBR unit, a clean water storage tank and the pool water purification unit.

The backwash wastewater from your pool will be purified and used for irrigation and other purposes.

Pool cleaning is a major money waste for a house budget. Pool filters need to backwashed regularly, at a minimum 3 times per week. Each backwash produces 250l of wastewater that otherwise will be wasted.
